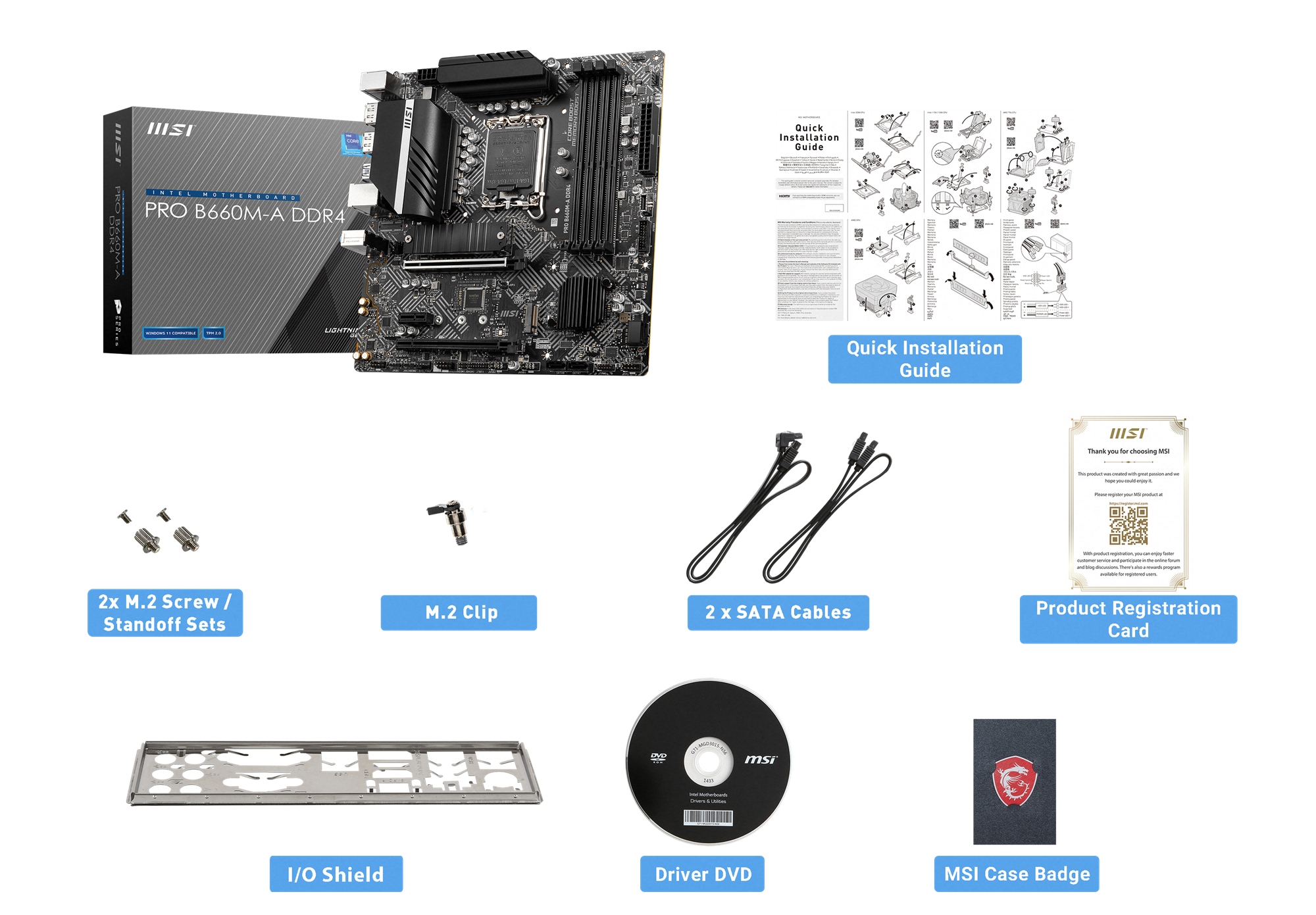

Po opravě autorizovaným servisem, pouze deska bez příslušenství, chybí chladič na m.2

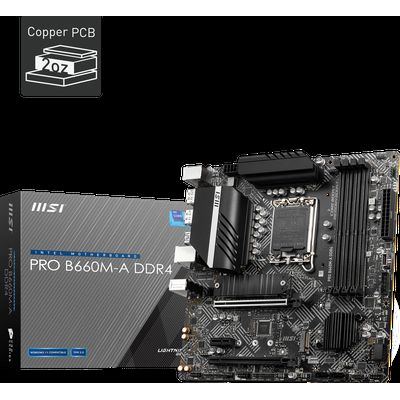

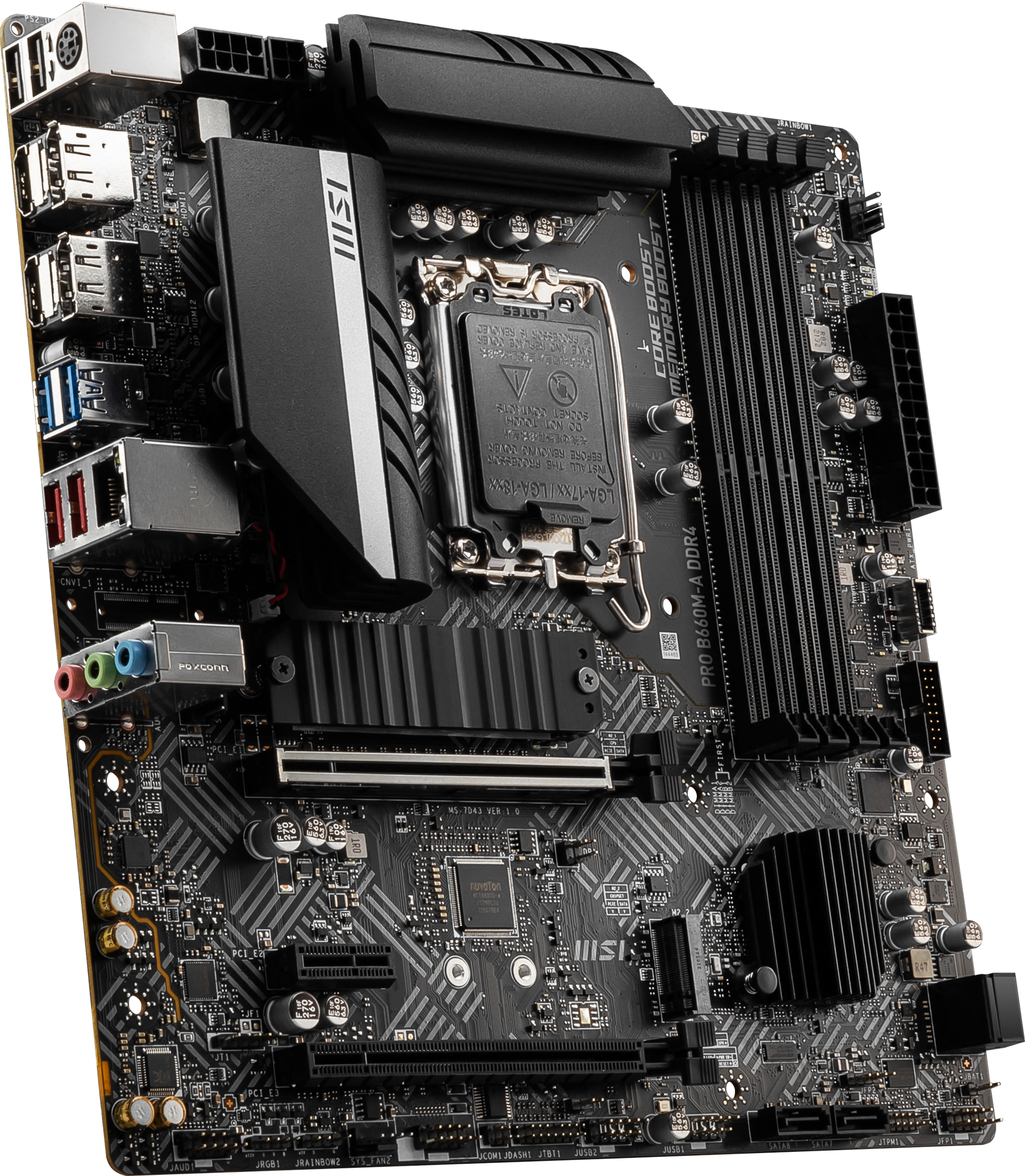

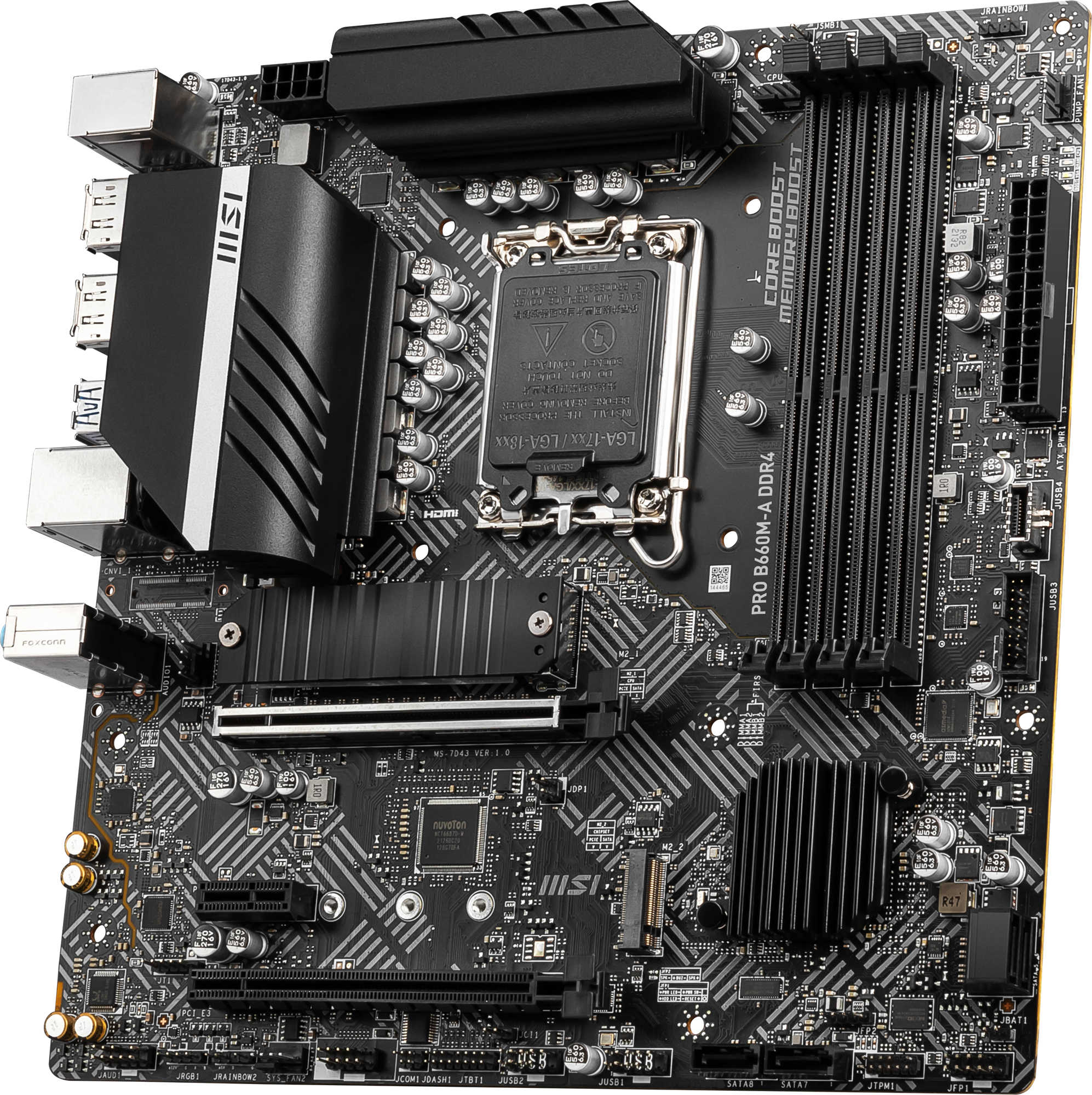

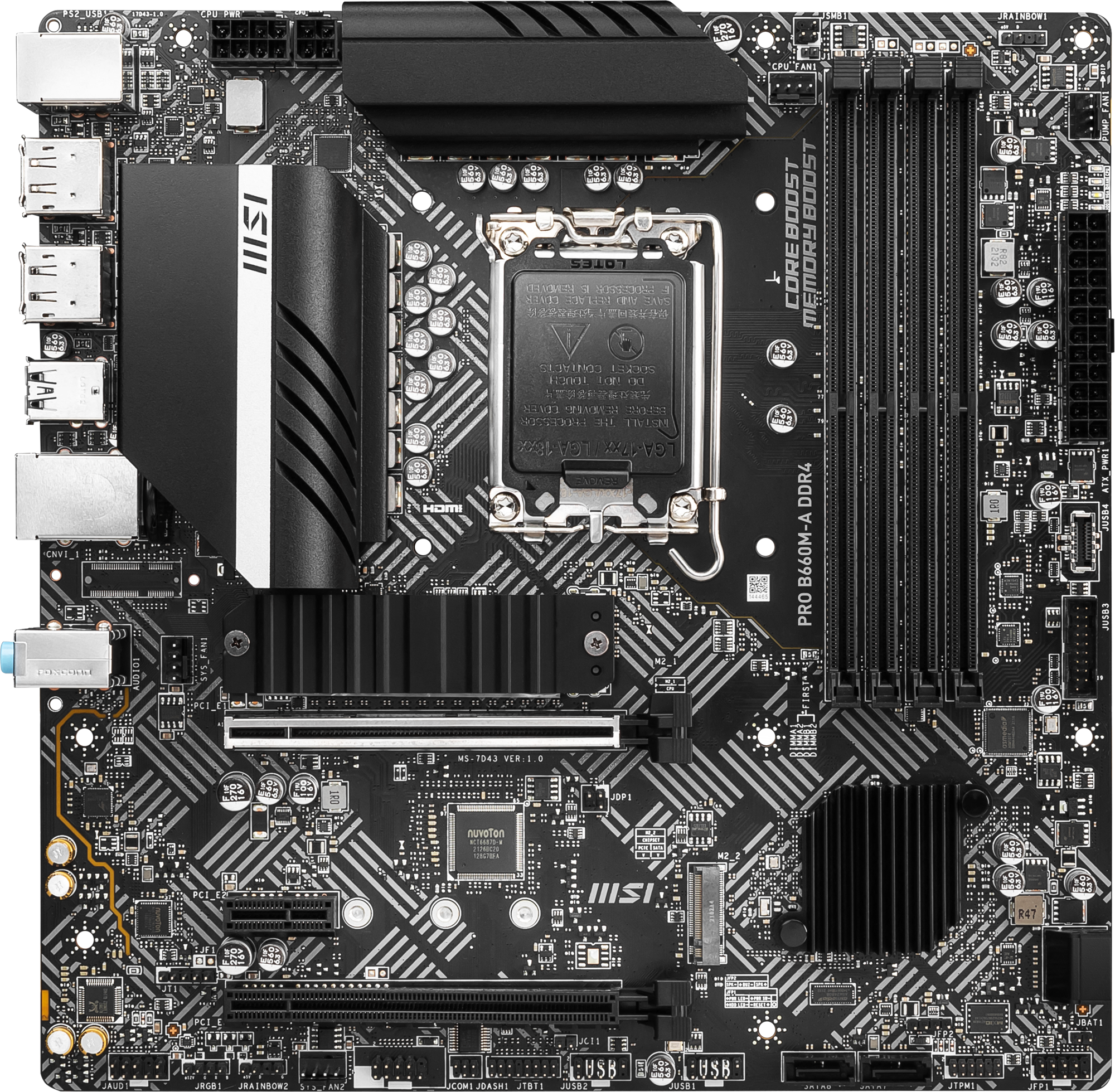

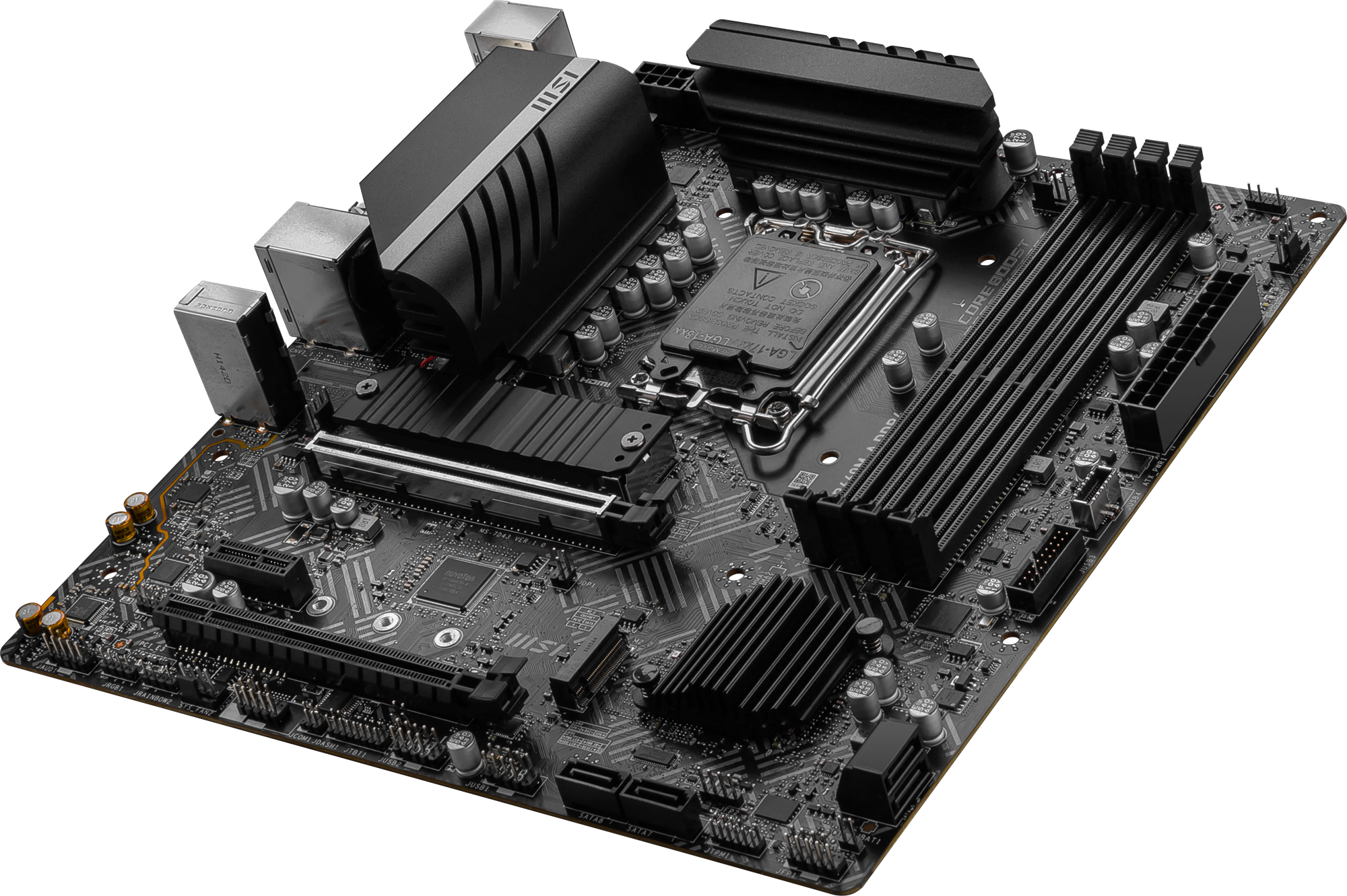

PRO B660M-A DDR4
Podporuje procesory 12. Gen Intel® Core™, Pentium® Gold and Celeron® pro socket LGA 1700.
Podporuje paměti DDR4, ař do 4800+(OC) MHz
Core Boost: Prémiové uspořádání a napájení podporují více jader a poskytují vyšší výkon.
Memory Boost: Pokročilá technologie dodávající čisté datové signály pro nejlepší výkon, stabilitu a kompatibilitu.
Bleskurychlá zkušenost: PCIe 4.0, Lightning Gen4 x4 M.2 s M.2 Shield Frozr
Prémiové tepelné řešení: 7W/mK podložka, přídavná tepelná podložka tlumivky a M.2 Shield Frozr jsou určeny pro vysoce výkonný systém a nepřetržitý provoz.
2.5G LAN: Modernizované síťové řešení pro profesionální a multimediální použití. Poskytuje bezpečné, stabilní a rychlé síťové připojení.
Audio Boost: Odměňte své uši studiovou kvalitou zvuku
CPU
Supports 12th Gen Intel® Core™ Processors
Processor socket LGA1700
Please go to www.msi.com to get the newest support status as new processors are released.
Chipset
Intel® B660 Chipset
Memory
4x DDR4 memory slots, support up to 128GB
Supports 1R 2133/2666/3200 MHz (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 4800+ MHz
1DPC 2R Max speed up to 4000+ MHz
2DPC 1R Max speed up to 4000+ MHz
2DPC 2R Max speed up to 3600+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memoryy
Supports Intel® Extreme Memory Profile (XMP)
Please refer to www.msi.com for more information on compatible memory.
Expansion Slot
2x PCIe x16 slots
PCI_E1 (From CPU)
Support PCIe 4.0 x16
PCI_E3 (From B660 chipset)
Support PCIe 3.0 x4
1x PCIe 3.0 x1 slot (Fom B660 chipset)
Onboard Graphics
2x HDMI 2.1 with HDR ports, supporting a maximum resolution of 4K 60Hz
2x DisplayPort 1.4 ports with HBR3, supporting a maximum resolution of 4K 60
Available only on processors featuring integrated graphics.
Graphics specifications may vary depending on the CPU installed.
Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Storage
4x SATA 6Gb/s ports (From B660 chipset)
2x M.2 slots (Key M)
M2_1 slot (From CPU)
Supports up to PCIe 4.0 x4
Supports 2242/ 2260/ 2280 storage devices
M2_2 slot (From B660 chipset)
Supports up to PCIe 4.0 x4
Supports up to SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Supports Intel® Optane™ Memory
Support Intel® Smart Response Technology for Intel Core™ processors
SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
LAN
1x Realtek® RTL8125BG 2.5Gbps LAN controller
USB
Intel® B660 Chipset
2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
3x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 1 Type-C available through the internal connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 Type-A ports available through the internal connectors)
Asmedia ASM1074
2X USB 3.2 Gen 1 5Gbps Type-A ports through the internal connector
Internal connectors
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
4x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps Type-A connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
2x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
1x Clear CMOS jumper
1x TBT connector (supports RTD3)
1x Serial port
1x Tuning Controller connector

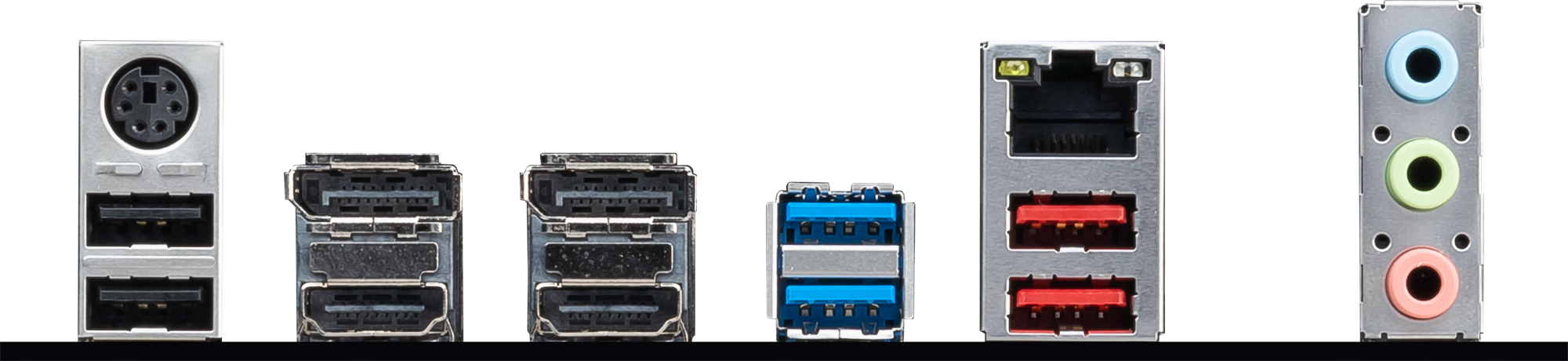

Back panel ports
Keyboard / Mouse
DisplayPort
USB 3.2 Gen 1 5Gbps Type-A
LAN port
Audio connector
USB 2.0
HDMI
USB 3.2 Gen 2 10Gbps Type-A
Dimensions
Micro-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
