HARDWARE FEATURES
Standards and Protocols:IEEE 802.3, 802.3u, 802.3x, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS

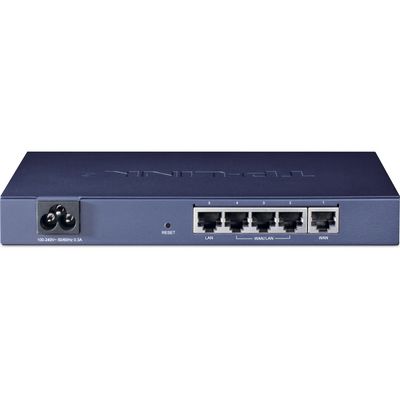

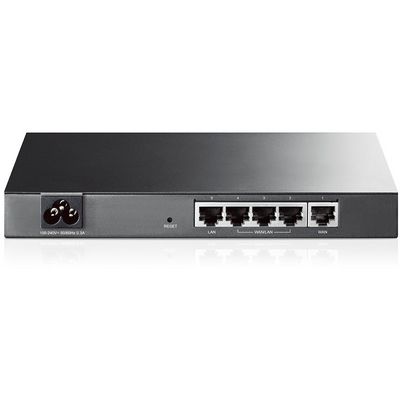

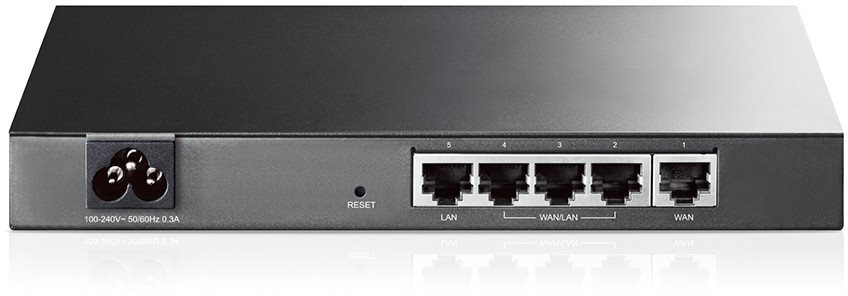

Interface>1 Fixed Ethernet WAN Port, 1 Fixed Ethernet LAN Port, 3 Changeable Ethernet WAN/LAN Ports
Network Media:10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100Ohm STP (maximum 100m), 100BASE-TX: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100Ohm STP (maximum 100m)
Button:Reset Button
Dimensions(WxDxH):209*126*26 mm
Power Supply:Internal Universal Power Supply, AC100-240V~ 50/60Hz Input
SOFTWARE FEATURES
WAN Type:Dynamic IP, Static IP, PPPoE, PPTP, L2TP, BigPond Cable
Basic Function:DHCP Server, DHCP Client, MAC Address Modify/Clone, VPN Pass-through, Static Routing, Dynamic DNS
Multi-WAN Function:WAN Load Balancing, Detecting Online
Quality of Service:IP and Port Based Bandwidth Control, Session Limit
Port Forwarding:Virtual Server, Port Triggering, DMZ Host, UPnP
Dynamic DNS:Dyndns, No-IP, PeanutHull, Comexe
VPN Pass-Through:PPTP, L2TP, IPsec (ESP)
Access Control:Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security:IP Address Filtering, MAC Address Filtering, Domain Name Filtering, DoS Protection
Management:Web Management, Port Mirror, Restore & Backup Configuration, Remote Web Management
OTHERS
Certification:CE, FCC, RoHS
Package Contents:TL-R470T+, Power cord, RJ-45 Ethernet Cable, WAN/LAN Ports Configuration Guide, Resource CD
Temperature:Operating: 0°C~40°C (32°F~104°F), Storage: -40°C~70°C (-40°F~158°F)
Environment:Operating: 10%~90% RH Non-Condensing, Storage: 5%~90% RH Non-Condensing
