HARDWARE FEATURES
Interface24 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Network Media10Base-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100U STP (maximum 100m); 100Base-Tx: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100U STP (maximum 100m); 1000Base-T: UTP category 5, 5e cable (maximum 100m)
Switching Capacity48Gbps
External Power SupplyInput: 100~240VAC, 50/60Hz Output: 12VDC/2.0A
Dimentions( W x D x H )11.6*7.1*1.7 in. (294*180*44 mm)
SOFTWARE FEATURES
Transfer MethodStore and Forward
Advanced Functions802.3X Flow Control, Back Pressure; Auto-Uplink Every Port
OTHERS
CertificationFCC, CE, RoHS

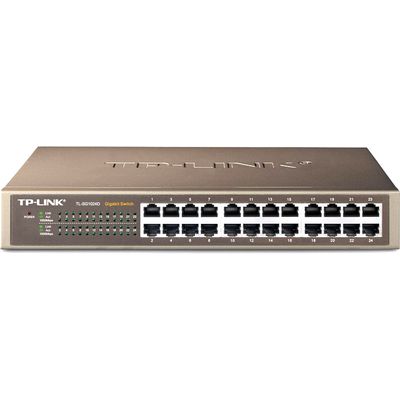

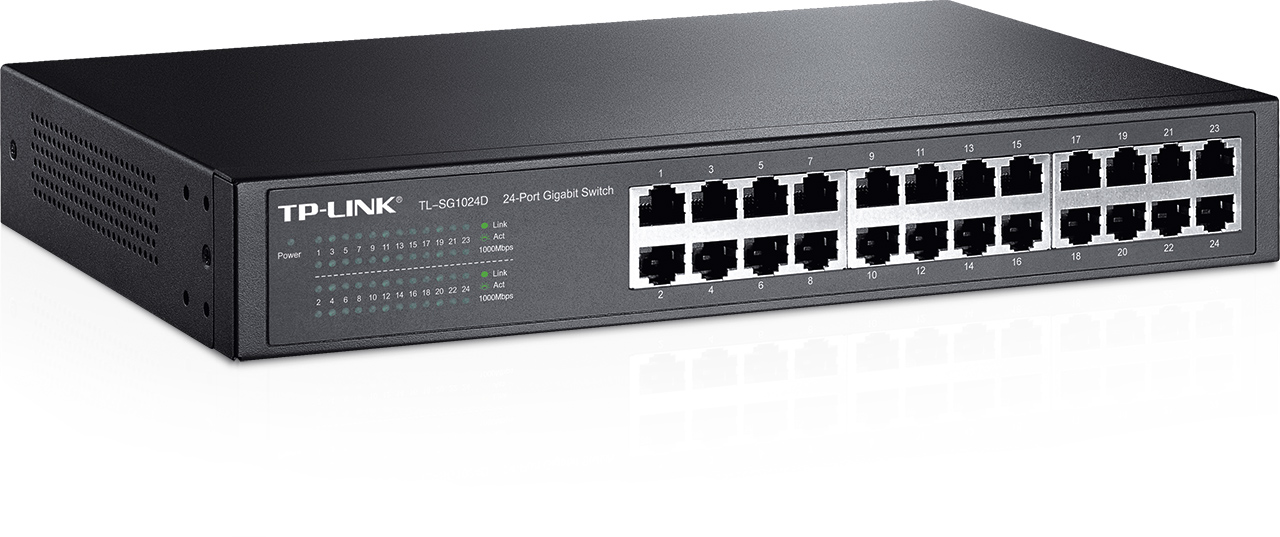

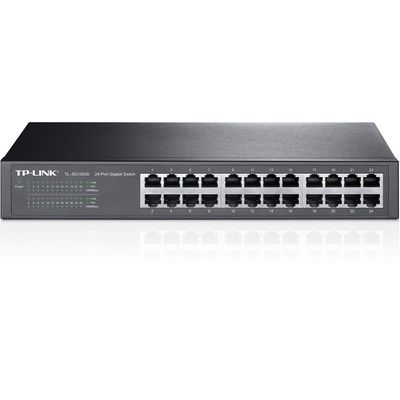

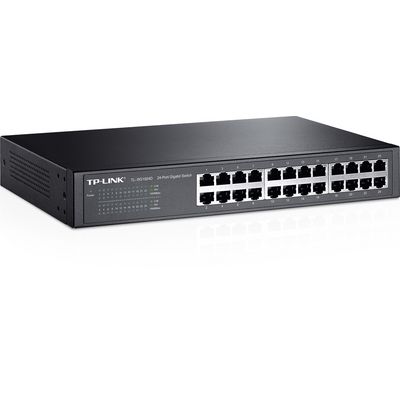

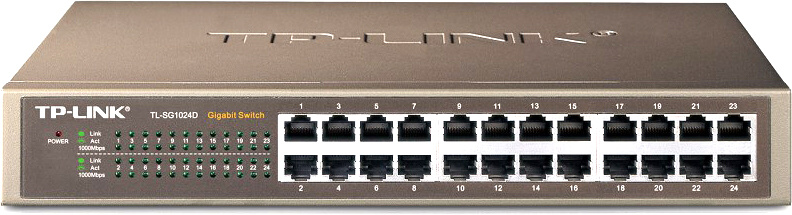

Package Contents24-Port Gigabit Desktop/Rackmount Switch, Power Cord, User Guide
EnvironmentOperating Temperature: 0°C~40°C (32°F~104°F); Storage Temperature: -40°C~70°C (-40°F~158°F); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
Parametry:Flow Control (řízení toku): anoVýška [mm]: 44Šířka [mm]: 294Hloubka [mm]: 180Počet portů RJ-45: 24Rychlost přenosu (RJ45 port) [Mb/s]: 1000Přepínací kapacita [Gbps]: 48Tabulka Mac adres: 8000Spotřeba [W]: 15Rack: anoL2: ano
